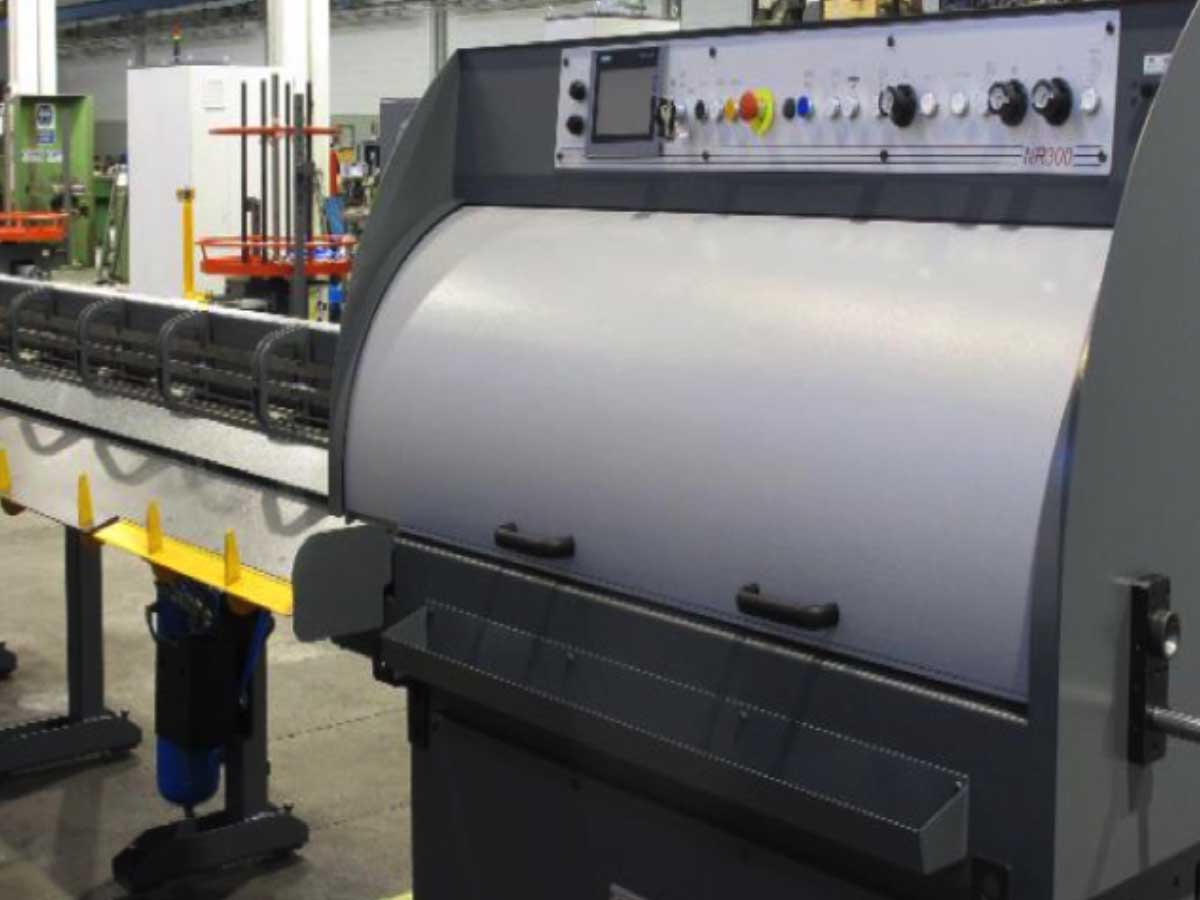

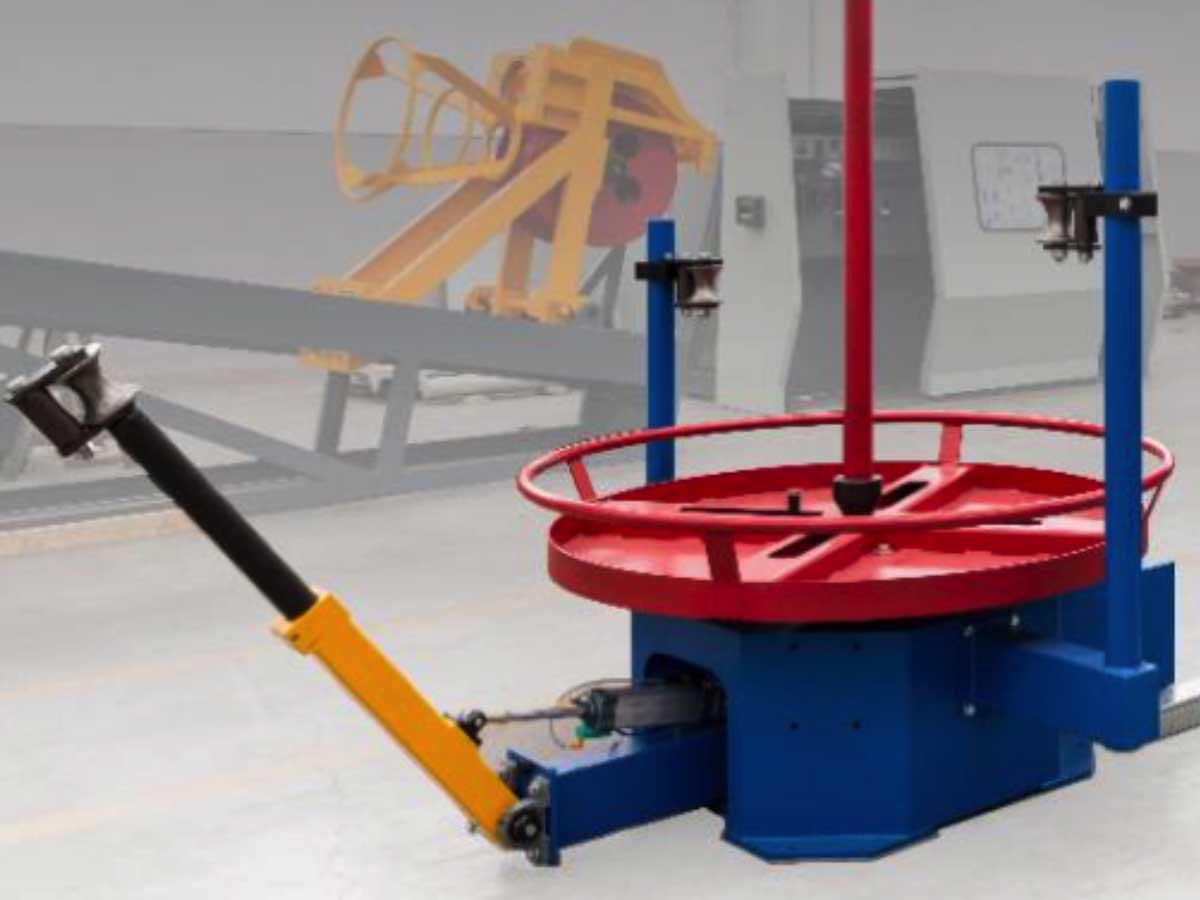

Straightening & Cutting Iron Machine

ERR·100

The function of this machine is to prepare the transversal bars that make up the steel mesh of the panel which will be welded on the AUTOMATIC WELDING LINE.

Starting from reels of 1 or 2 T of steel, the machine straightens and cuts the lengths of the transversal bars of the panel.

Technical Specifications

Inlet material:

  • 1-5 mm UTS < 800 MPa
  • 1-4 mm UTS < 1200 MPa
  • 1 -3 mm UTS < 1600 MPa

Wire feed speed: max 150 cuts/min.
Number of cuts per minute: max 150 cuts/min.

Minimum cutting length:

  • 150 mm (using the standard measuring device)
  • > 35 mm (continuous cutting mode with mechanical stop)
  • < 35 mm (continuous cutting mode w/out mechanical stop)

Length tolerance: +/- 0,2 mm
Air consumption: 0.5 NL/cut (Max. 80 NL/min.) every 3mt bench
Machine size: (LxWxH) 1400 x 900x 1550 mm
