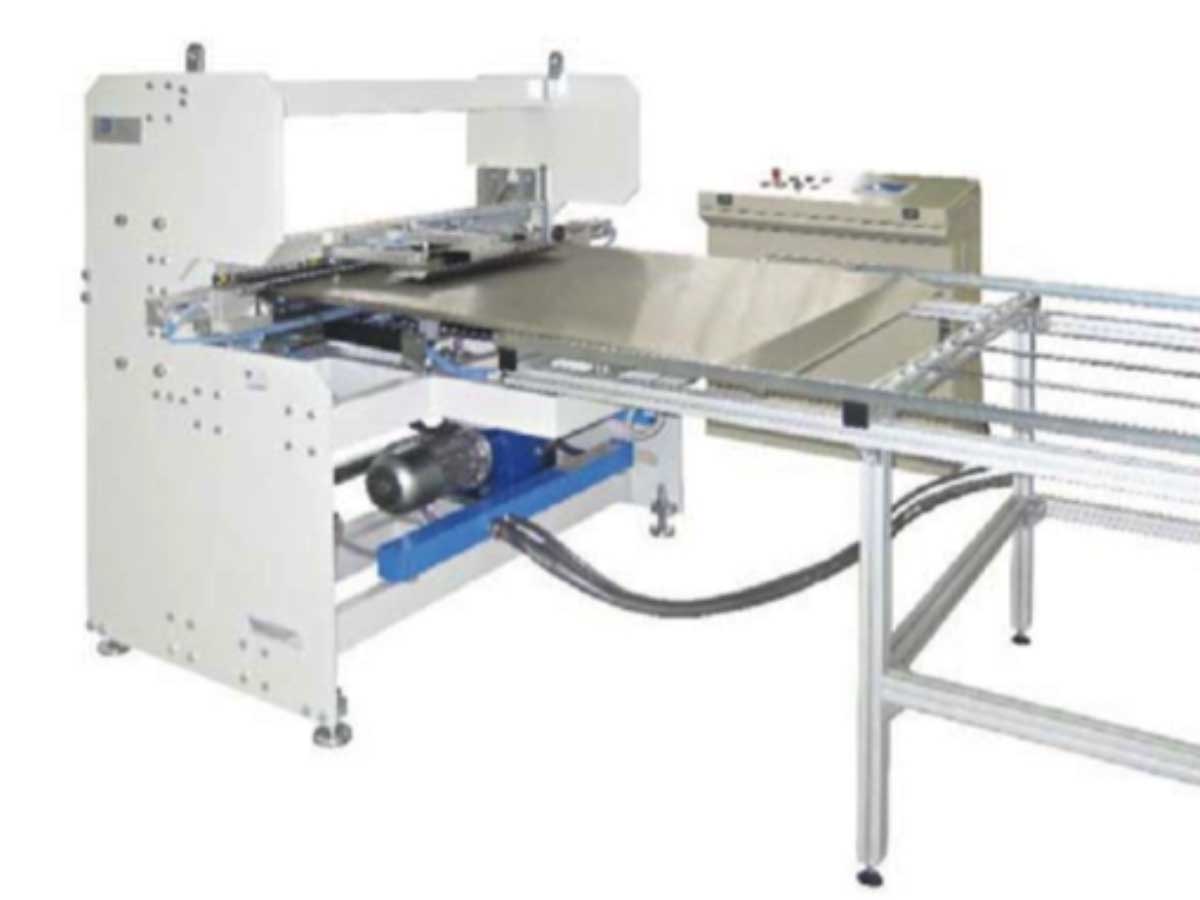

The function of this machine is to cut the steel mesh and bend it in order to prepare the complementary elements such as reinforced angular mesh and reinforced flat mesh to place in all the vertical and horizontal edges of constructions carried out with the panel.
It is also possible to bend mesh into zigzag shapes that are used to form the panels for staircases with the constructive system.
Technical Specifications
Engine power: 2.2 Kw
Air pressure: 6-8 bar
Air consumption: 500 l/min
Minimum width of mesh: 1160 mm
Maximum width of mesh: 1235 mm
Minimum length of mesh: 500 mm
Maximum length of mesh: unlimited
External dimensions: L1820 A1.670 H1.300 mm
Maximum fold diameter: 3×3 mm
