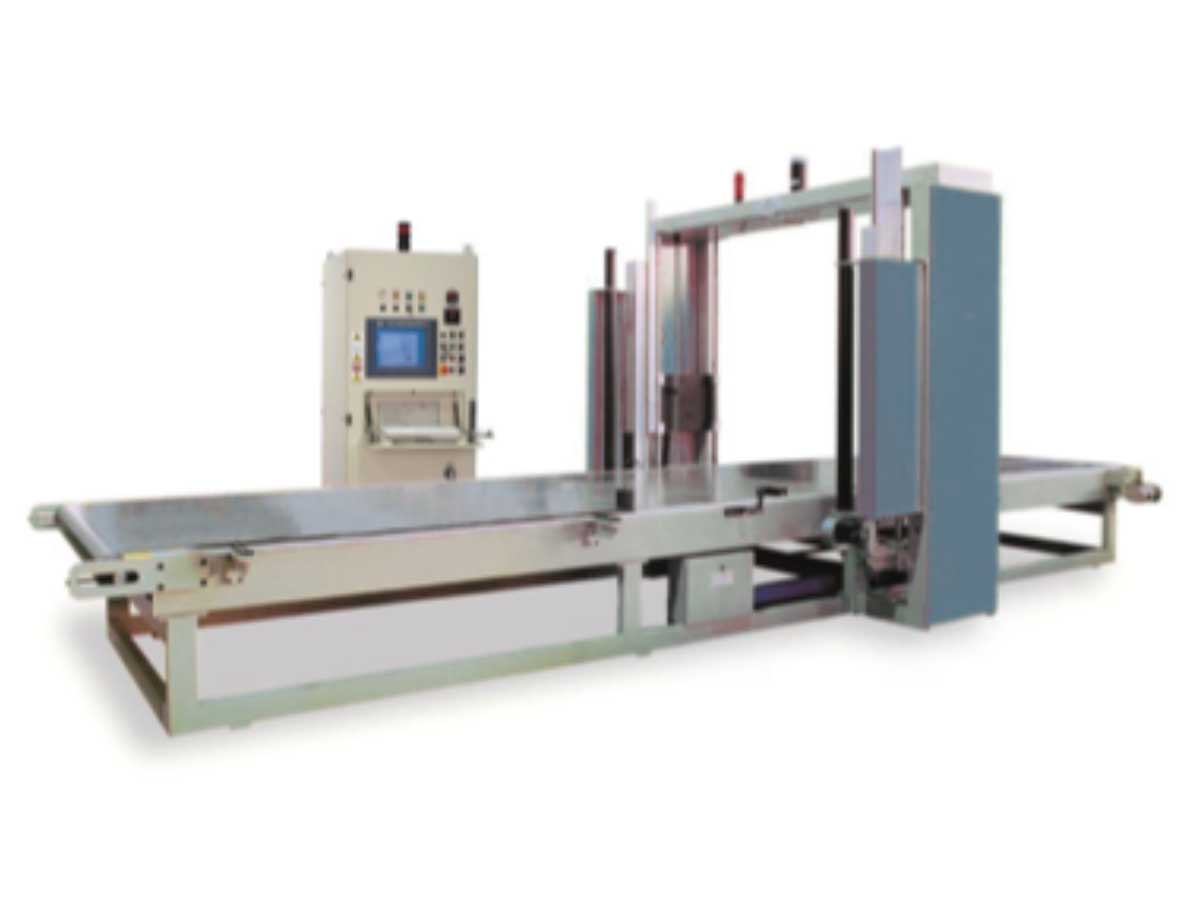

EPS Block Cutting Machine

EPSCUT·4000

The function of this machine is to cut polystyrene blocks into plaques with profile and dimensions according to the panel production drawings established in the design phase of the project.

The machine consists of a conveyer belt and lateral support rollers to keep the product that is being cut on the work surface.

Technical Specifications

Useful cutting dimensions:

  • L 4.000 mm
  • A 3.000 mm
  • H 1.450 mm

Exterior dimensions:

  • L 5.800 mm
  • A 4.500 mm
  • H 2.600/3.600 mm

Conveyer belt width: 2.100 mm

Bar length of bronze carrier

Fixed vertical bar wires: 1.440 mm

Maximum n° wires: 35, with positioning and manual gearbox

Maximum Vertical displacement: 1.300 mm

Movement:

  • Axis X by means of conveyer belt with high friction
    coefficient.
  • Axis Y by means of ball screws.

Software: CAD for the profile design required
