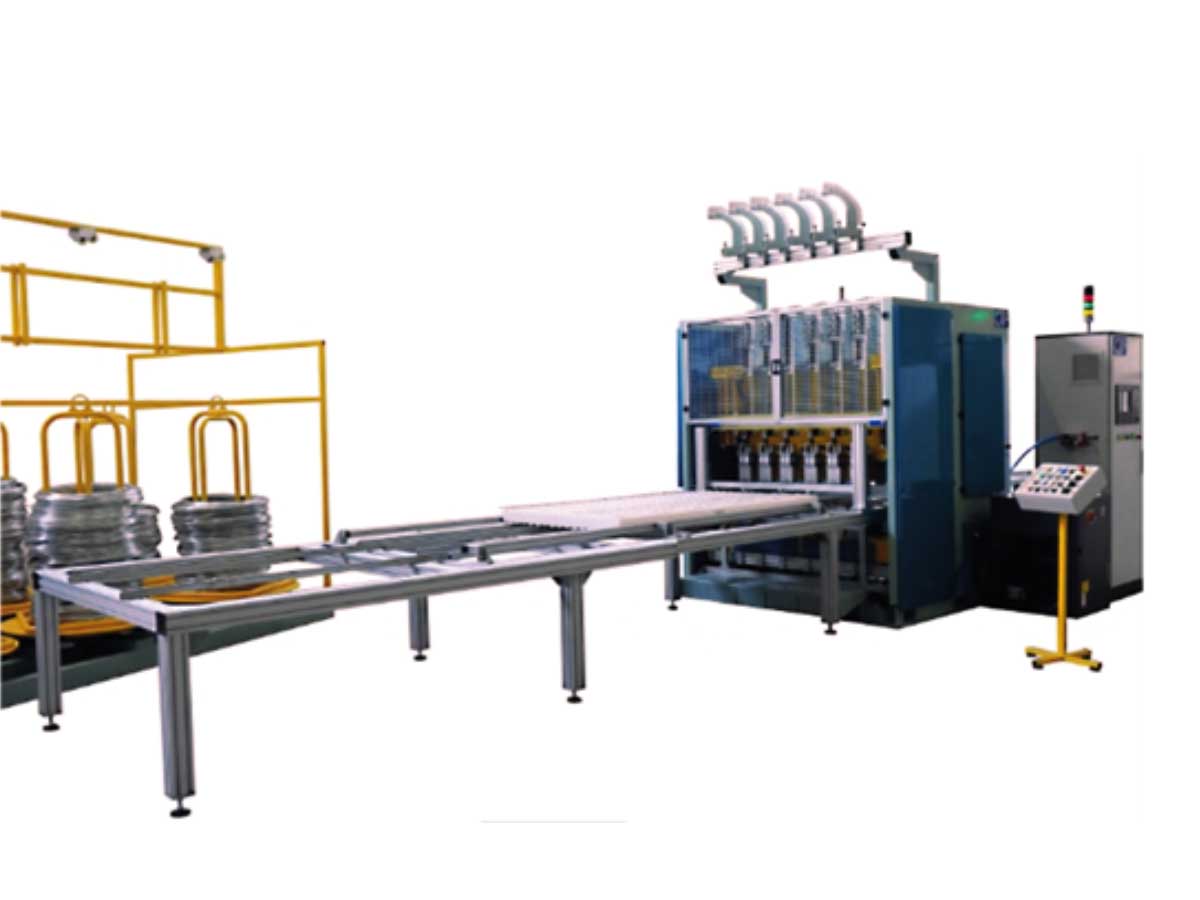

This machine enables the assembly of panels, welding the vertical connectors to the two corresponding wires of the electro-welded mesh positioned horizontally along the welding bench, with the inter-positioning of one or more polystyrene blocks in the pantograph.
The machine consists of the following elements: loading bench; welding block; devices for continuous feeding of wire; unloading bench; control panel; command console.
Maximum dimensions of panel
Maximum panel length: 6.000 mm
Maximum width of solder: 1.250 mm
Minimum/máximum panel height: 40-350 mm
Diameter of mesh wire: 40-350 mm
Diameter of connecting wire (wire for connecting lower & upper mesh): 2.5-3 mm
Standard mesh dimensions: 1.250 x 3.000 mm
Special mesh dimensions: 1.250 x 6.000 mm
Step mesh with 3 mm wire: 75/150 mm
Step mesh with 6 mm wire: 150 mm
Maximum width (light passage): 1.346 mm
Technical Data
Three phase feeder 50 Hz: 400±10% V
Fuse: 40 A
Power rating at 50%: 63 kVA
Maximum short circuit current: 17 kA
Average 8 hours production for a simple panel (thickness=50mm) and insertion connecter with step 150 mm (loading and unloading excluded): 15 cycles/min
Maximum width (light passage): 1.346 mm
Additional Info
With a 150 mm step the automatic panel assembly machine produces a panel 1.2 m wide by 3.00m long in 90 seconds. That is to say, 45 panels per hour = 1152 m2 / 8 hours day.
