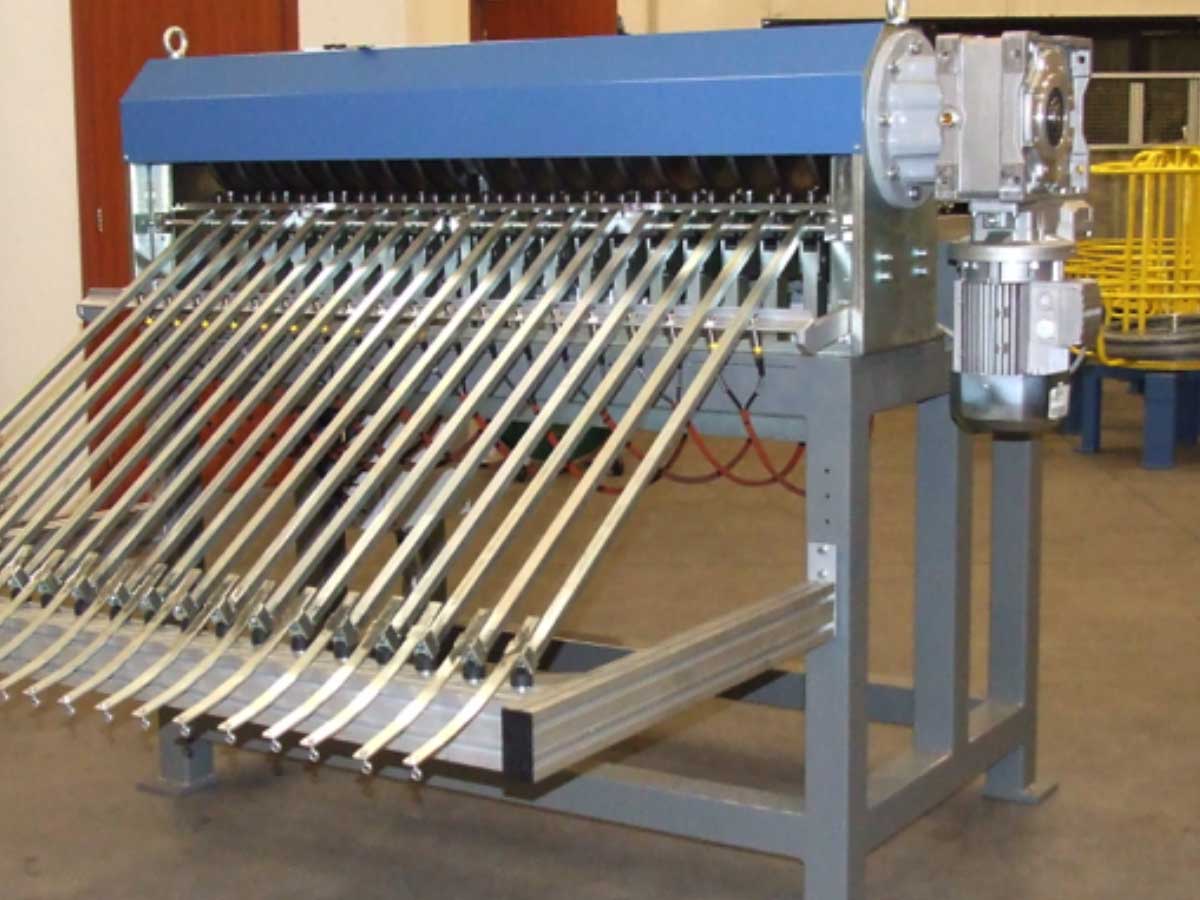

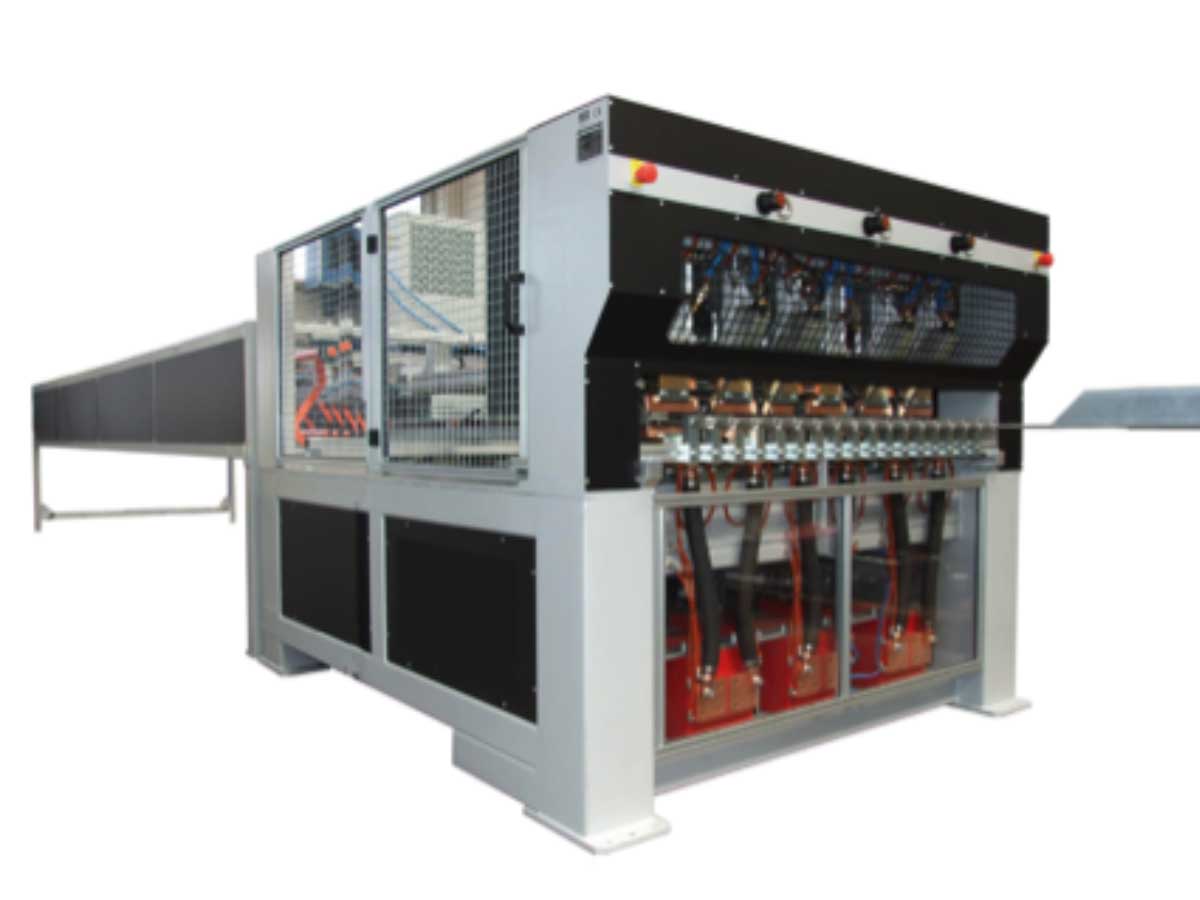

This machine has the function of welding the longitudinal wires, fed automatically from reels, normally Ø3mm, with transversal wires placed in the interior from an automatic loader.
The machine consists of the following elements: Store and longitudinal wire straightening line; welding block containing transversal wire unloader; electro-welded mesh stacker; control panel; command console for the activation of the welding cycle.
Dimensions of Mesh
Maximum length: 6.000 mm
Maximum width: 1.250 mm
Technical Data
Three phase feeder 50 Hz: 400±10% V
Fuse: 100 A
Power rating: 192 kVA
Short-circuit current: 32 kA
Power line: 3+3 mm
Power line: 6+3 mm
Power line: 6+6 mm
Average Production
120 welding stroke/minute
